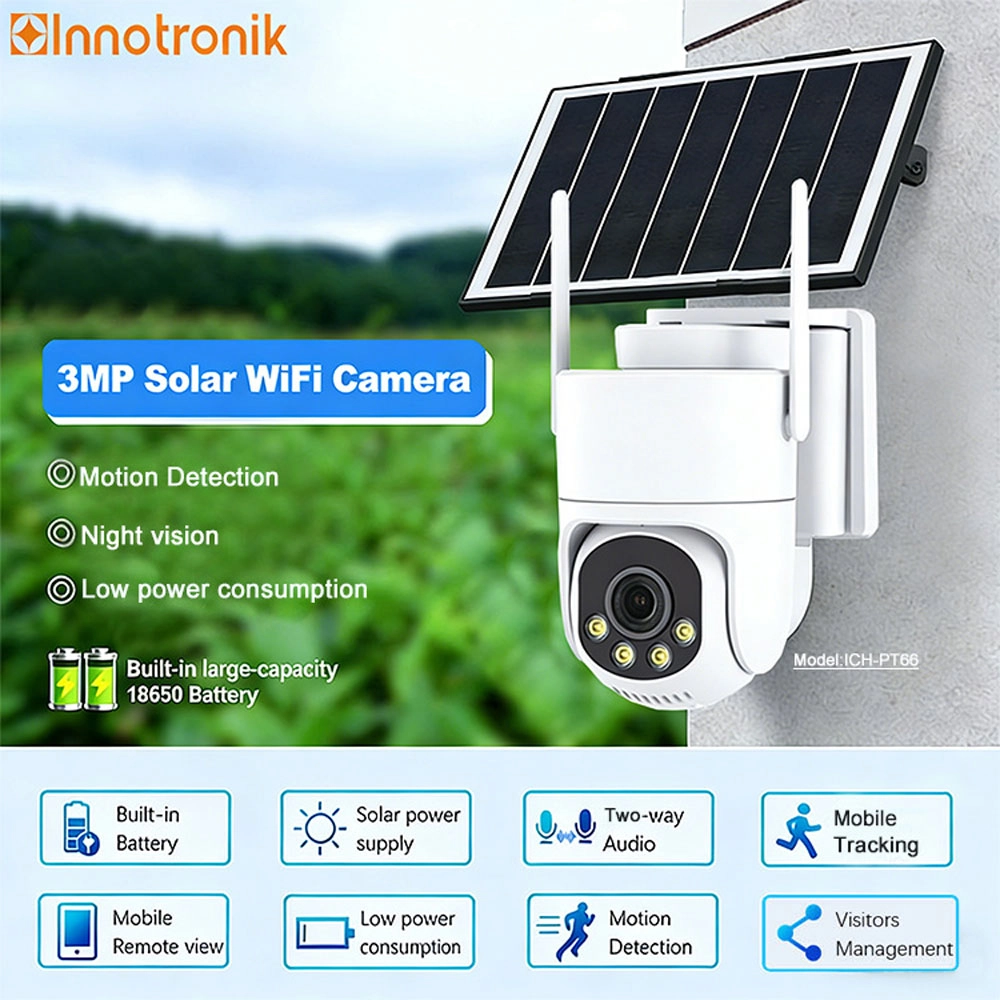

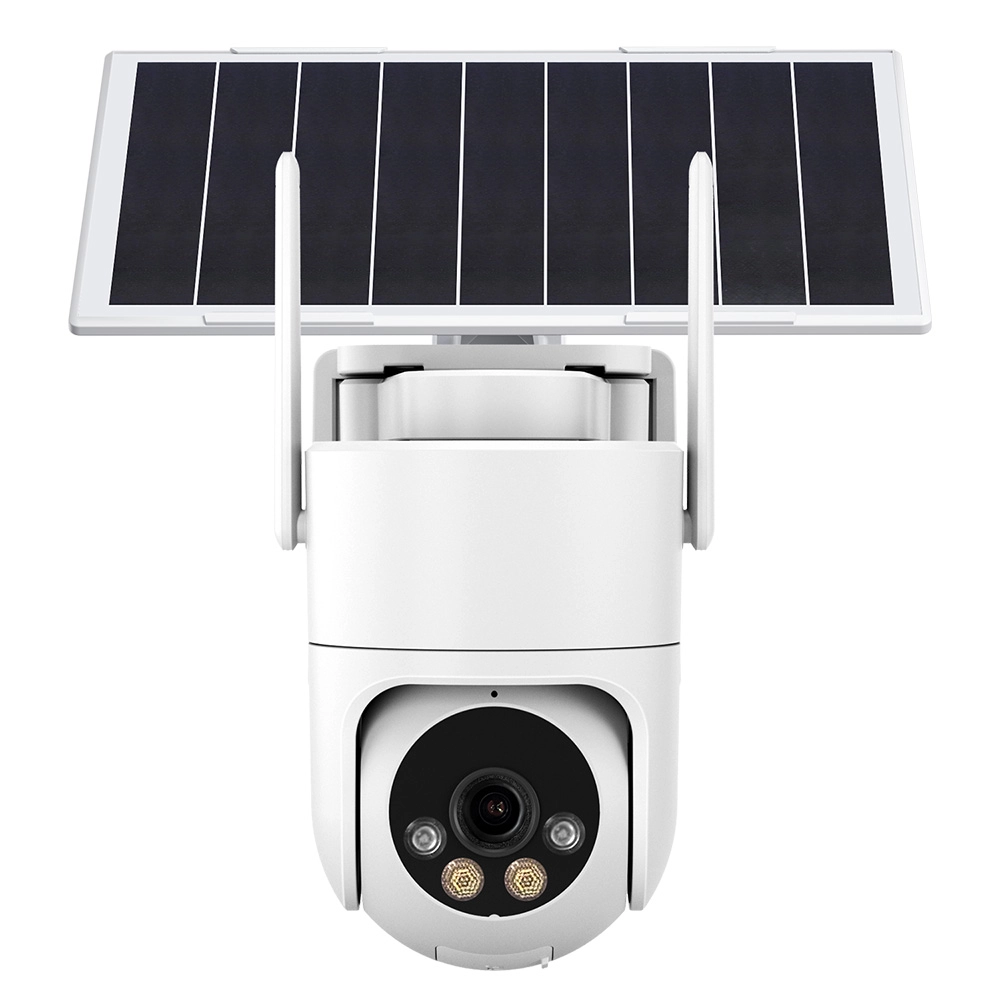

AOV Camera ICH-PT66-3MP
The Innotronik AOV Camera ICH-PT66-3MP delivers crisp, high-resolution 3MP imaging for advanced surveillance. Designed for reliable performance in diverse environments, this AOV camera ensures clear visuals and seamless monitoring. Ideal for comprehensive security solutions.
-
✦ 3MP AOV Camera for clear, low-power surveillance
-

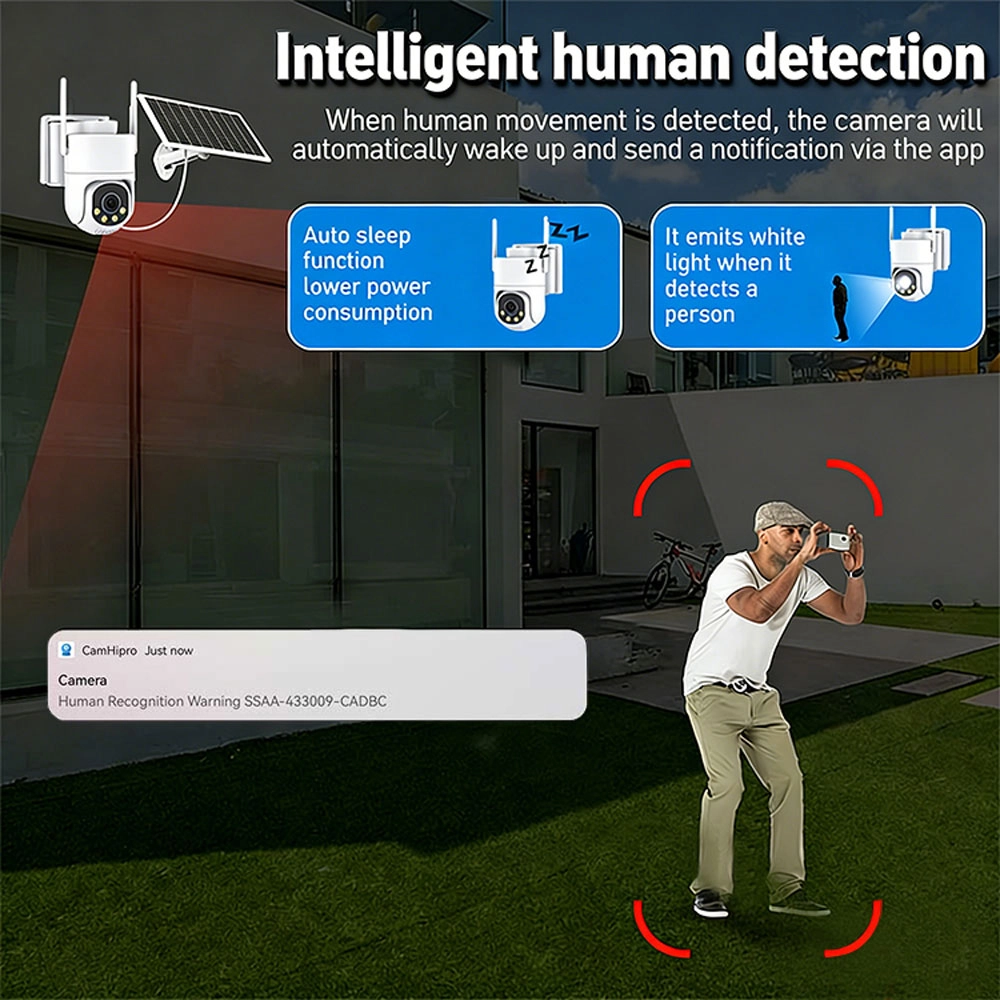

✦ Smart human detection with adaptive frame rate
-

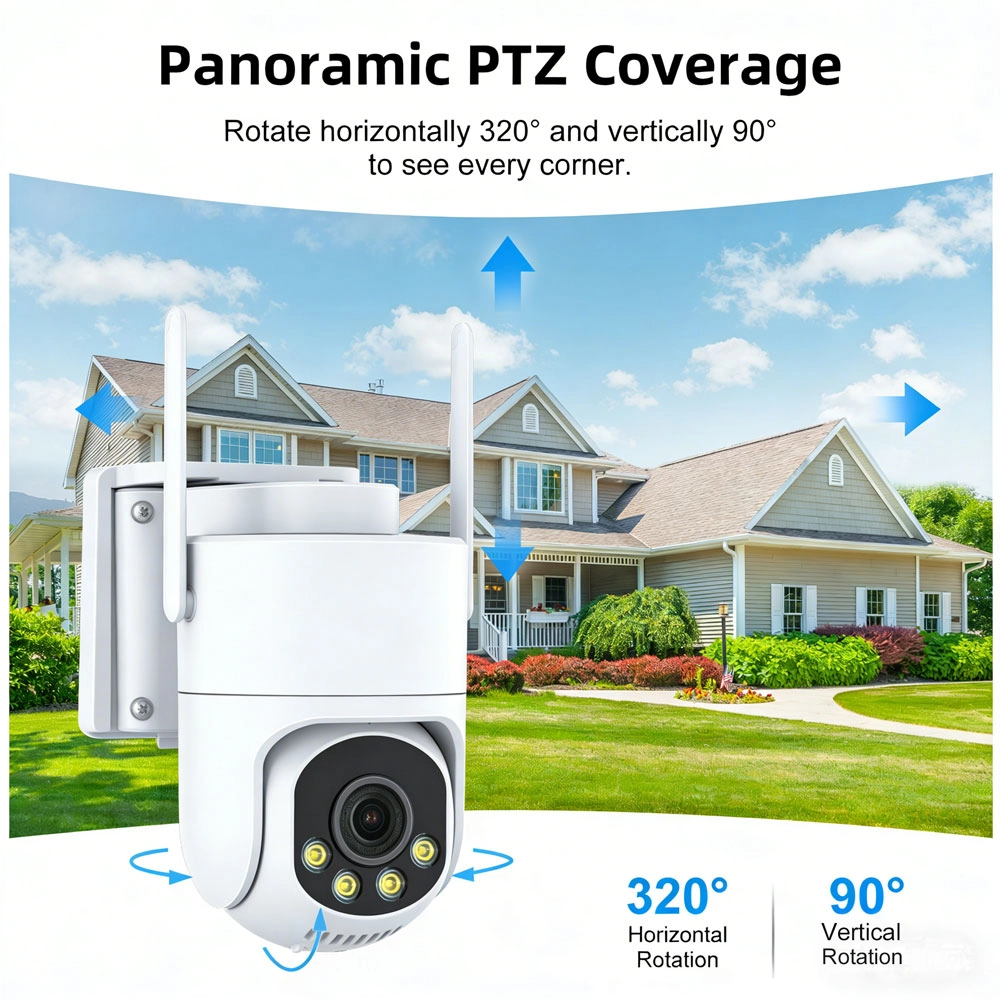

✦ 320° pan / 90° tilt wide-area coverage
-
✦ Battery & solar powered for long-term outdoor use
-

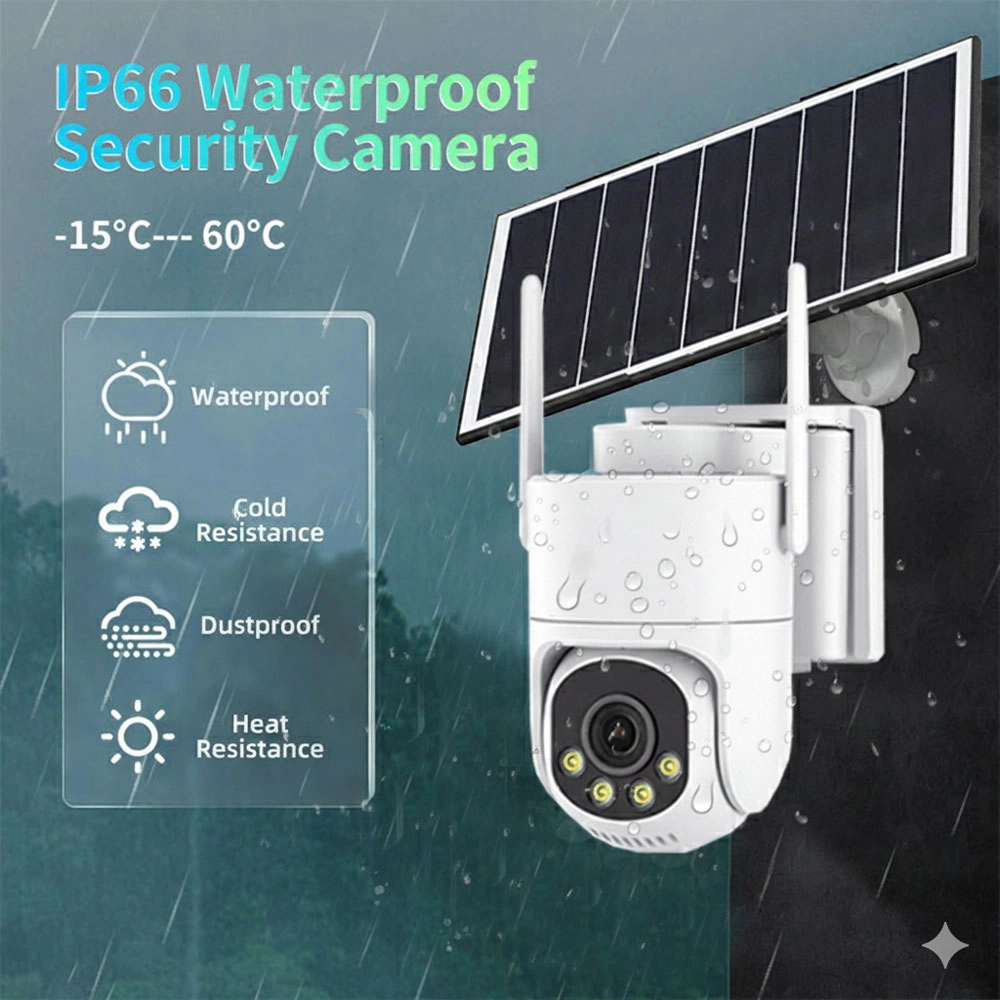

✦ IP66 waterproof with day & night monitoring
AOV Camera Parameters
| Main Functions | ICH-PT66(3MP) | ||
| Color | All white or all black | ||
| Induction principle | Human detection | ||
| Working principle | When there is no human figure in the frame, the device displays one frame per second; when a human figure appears, the frame rate returns to 15 frames per second. | ||
| Main chip | HI3516V608 | ||
| Sensor | 1/2.9" CMOS sensor | ||
| WIFI module | Dual-band Wi-Fi, supports Bluetooth network pairing | ||
| Network protocols | P2P | ||
| Adjustable angle | Pan 320°, tilt 90° | ||
| Resolution | 2304*1296/3MP | ||
| Focal length | 4MM@F1.6 | ||
| Shooting angle | 83 degrees | ||

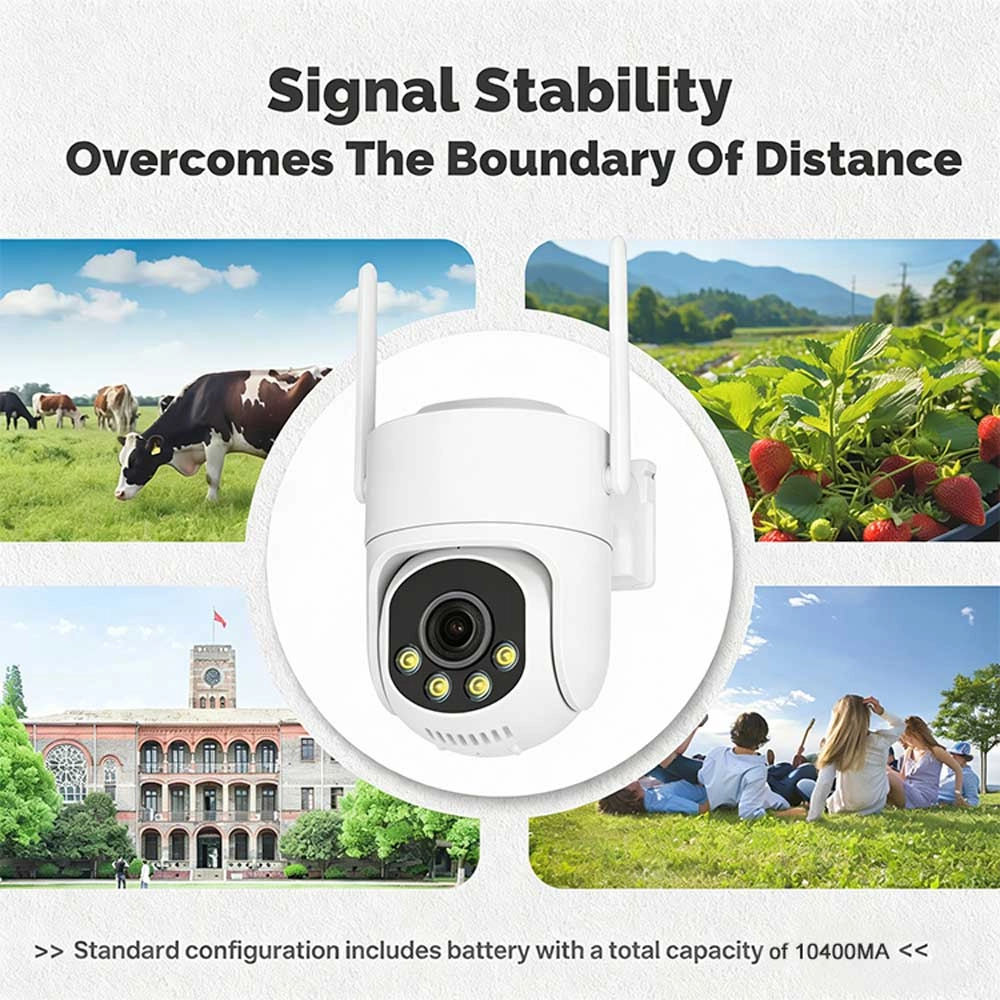

| Battery capacity | 10400mAh | ||
| Solar panel power | 8W | ||
| Maximum charging current | 2000MA | ||
| Nighttime shooting | Infrared + white light (supplementary lighting) | ||
| White lamp power | ≤0.2W | ||
| Infrared power | ≤0.2W | ||
| Sensing distance | 0-30m | ||
| Operating temperature | -15℃ to 60℃ | ||
| Operating humidity | 0%-90%RH | ||
| Standby power consumption | Approximately 0.16W | ||
| Operating power consumption | Daytime ≤1W, Nighttime ≤2.2W | ||
| Waterproof rating | IP66 | ||
| Packaging dimensions | 261*212*172MM | ||
| Package weight | 1.5kg (Includes 4pcs 18650 batteries) | ||
AOV Camera Applications
Experience unmatched security with Innotronik’s V-SIM Solar Camera-ITY-PT51-4MP. This 4G solar security camera offers seamless remote monitoring, easy installation, and eco-friendly power, ensuring reliable surveillance anywhere with crystal-clear 4MP video quality.
✦ 0-10m 120° PIR long-range standby trigger for faster startup
✦ 6000 mAh battery with 1-month standby (30 times/day)
✦ Automatic full-color alarm recording
✦ 4MP true pixels and a high-resolution lens for premium imaging
✦ 15m dual-light night vision for clear vision, even in the dark
✦ Supports human motion detection and accurate app alarm push
✦ Two-way real-time voice intercom for communication anytime, anywhere
✦ 128GB TF card storage for recording even without an internet connection; cloud storage for more secure recordings
✦ IP65 waterproof and dustproof for wind and rain resistance
Innotronik’s Wifi Camera Outdoor-ITY-B11 (6MP) delivers high-resolution 6MP video for clear, reliable outdoor surveillance. Easy WiFi setup ensures seamless monitoring, making it ideal for home and business security. Durable design withstands all weather conditions for 24/7 protection.
✦ 6MP ultra HD video
✦ 3 night vision modes (smart/IR/color)
✦Two-way audio
✦ Dual-band WiFi + Bluetooth
✦Human/motion detection with alerts
✦ 24/7 recording (128GB local + cloud)
✦ Tuya Smart app control
✦IP66 Weatherproof (-30°C to +60°C)
Innotronik’s Wifi Camera Indoor-ITY-R7 (4MP) delivers crisp 4MP video with seamless wireless connectivity. This wireless indoor camera with audio ensures clear two-way communication, perfect for home or office security. Easy setup and reliable monitoring for peace of mind.
✦ 4MP Ultra-HD: 2560 x 1440 resolution for exceptional clarity.
✦ 2.8" Video Call: Built-in screen for instant face-to-face remote calls.
✦ Dual-Band WiFi 6: 2.4/5 GHz and BLE 5.4 for ultra-stable connection.
✦ 360° Smart Tracking: Full 355° pan & tilt with intelligent motion following.
✦ AI Smart Detection: Real-time alerts for humans, sounds, and baby crying.
✦ Enhanced Night Vision: The 4mm F2.0 lens provides 10m of clear night imaging.
✦ Clear Two-Way Audio: Built-in mic and speaker with echo cancellation.
✦ Flexible Storage: Supports 128GB MicroSD, Cloud, and H.265 coding.
The Innotronik Bulb Camera-ITY-R25 is the best light bulb security camera, combining discreet surveillance with bright LED lighting. Easy to install and perfect for home or office security, it ensures safety without compromising style. Trust Innotronik for reliable, innovative protection.
✦ 3MP HD video with H.264 compression
✦ 350° horizontal + 80° vertical PTZ for full coverage
✦ Dual night vision: 6 IR LEDs + 30 white light LEDs
✦ Two-way audio for real-time communication
✦ 24/7 recording (128GB local + cloud storage)
✦ Motion detection with instant mobile alerts
✦ Smart Life app remote control & multi-user sharing (up to 20 users)
✦ Stable WiFi connectivity
✦ Indoor use, operates in -30°C to 40°C
