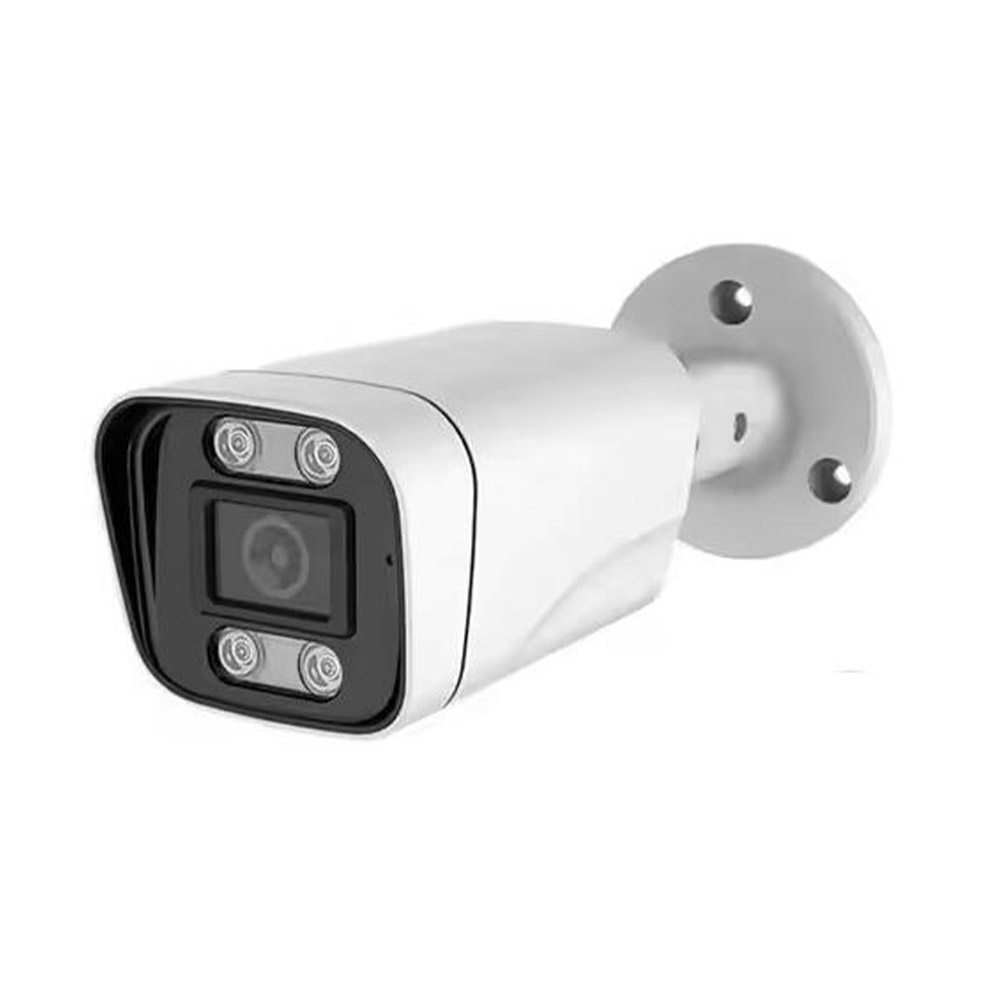

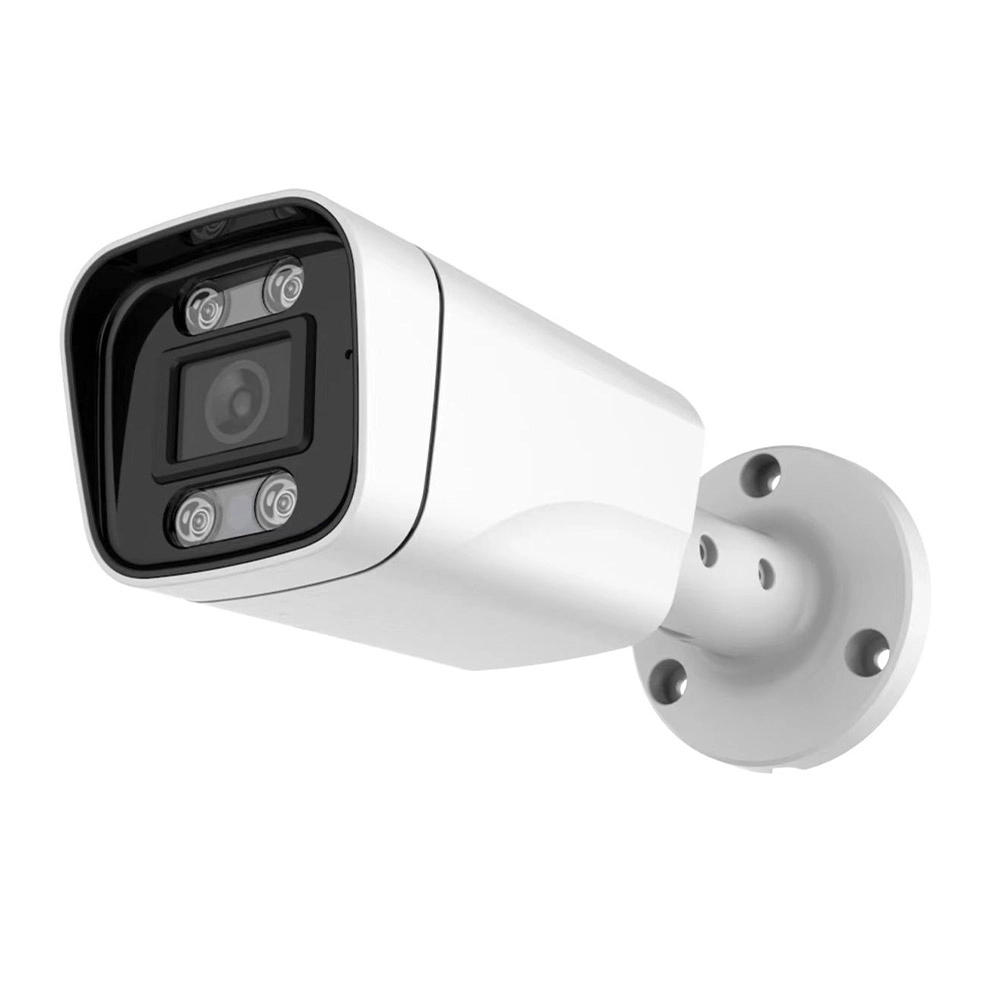

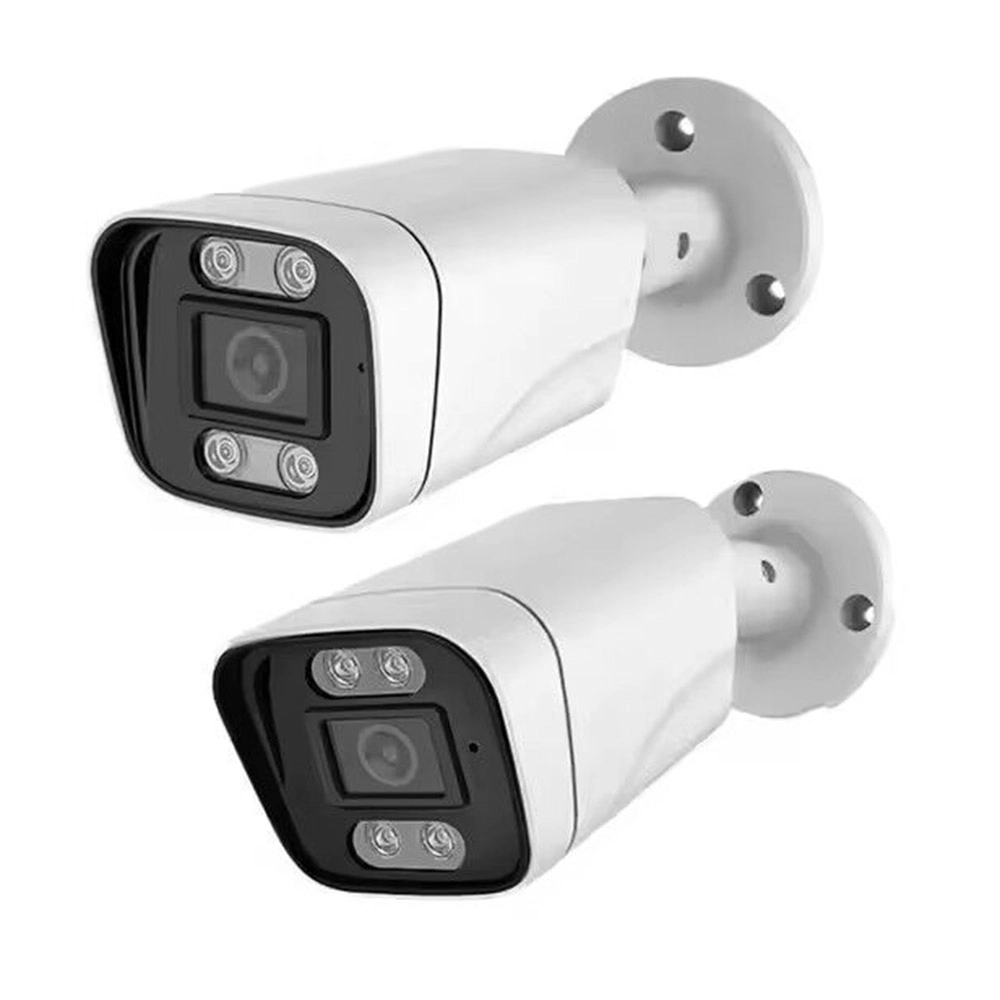

Hd Camera-IN-W022-IP400G
The Innotronik HD Camera IN-W022-IP400G delivers exceptional image clarity with advanced coaxial camera technology. Ideal for precise surveillance, this IP400G model ensures reliable performance and seamless integration for all coaxial camera systems. Perfect for professional security needs.

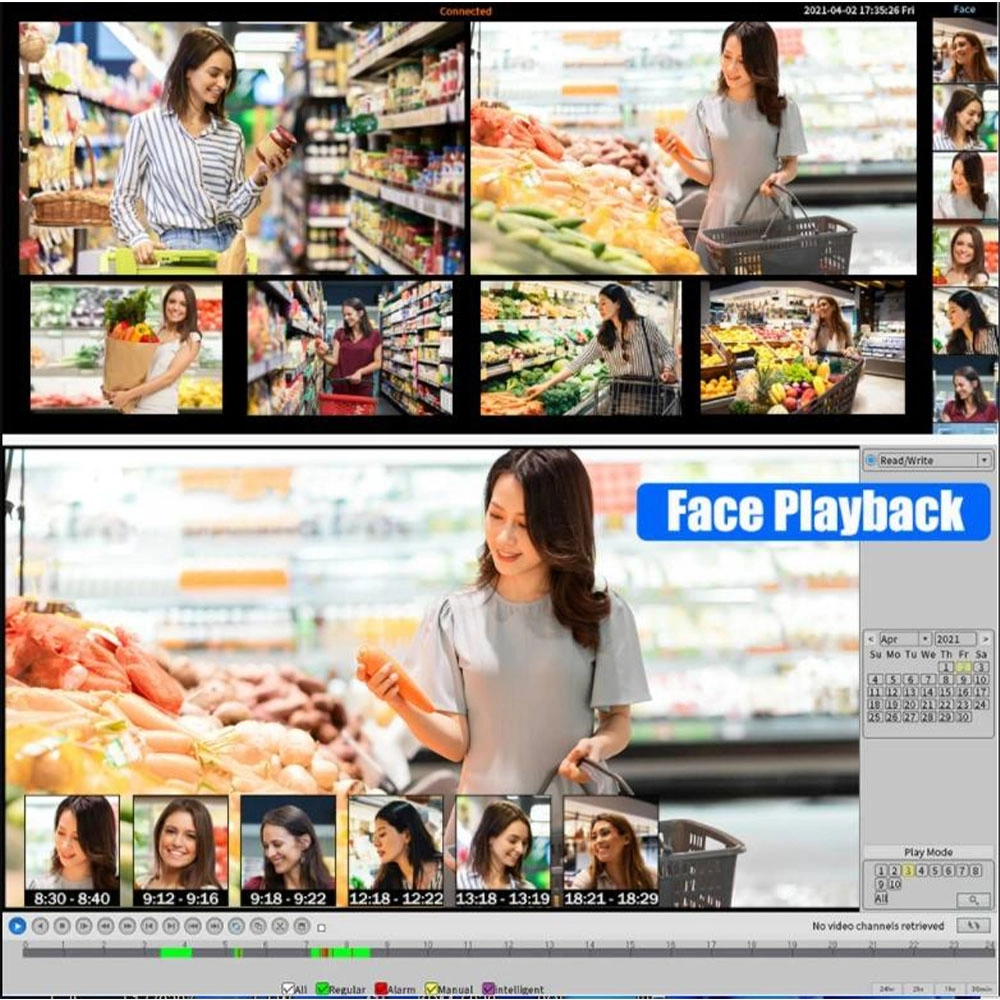

✦Face Recognition & Quick Playback: Easily find and review footage of specific people.
✦3 Night Vision Modes: Choose full-color, infrared, or auto-switching smart mode for clear night viewing.
✦Two-Way Audio: Talk to visitors or family in real time from your phone.

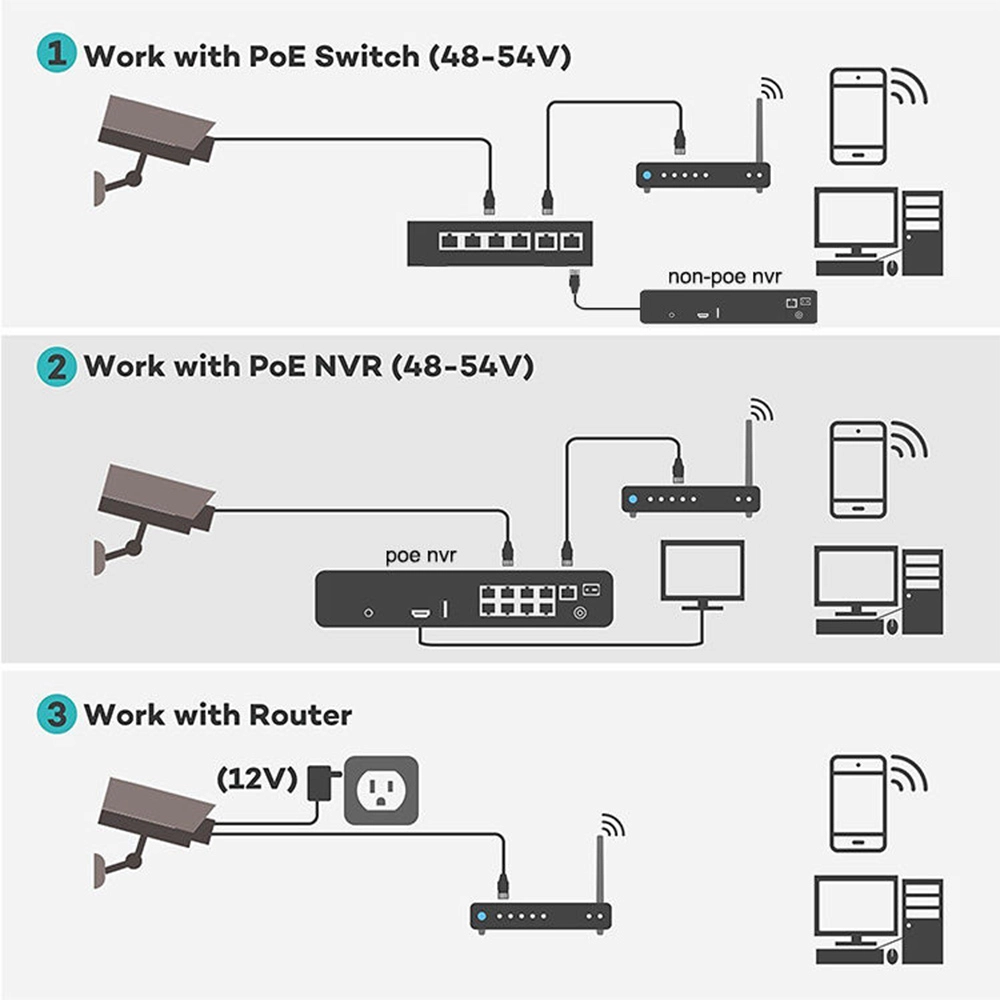

✦Flexible Setup: Works with a PoE switch/NVR or a standard router for both wired and semi-wired use.
Coaxial Cameras Parameters
| Product Mode | IN-W022-IP400G | ||
| Sensor | FH8852V200 + GC4653 | ||
| Function | |||
| D/N switch | Support D/N switching(IR-CUT optional) | ||
| White balance | Support auto white balance | ||
| BLC | Support | ||
| Noise Reduction | Support 3D NR | ||
| WDR | Support D-WDR | ||
| Motion Detection | Support | ||
| Mirror | Support | ||
| OSD | Support OSD setting, drag the position freely | ||
| Restart | Support | ||
| Intelligent function | |||
| Human detection | It supports human detection and polygonal defense area; Support the device to alarm after entering or leaving the warning area | ||
| Voice Announcements | Support voice broadcast after human detection. Voice content can be customized | ||
| E-fence | Support human/car detection, After entering the warning area, the device will give an alarm | ||
| AI box display | Support | ||
| Camera alarm function | Light&sound alarm, voice broadcast and alarm output | ||
| Alarm linkage | Support linkage NVR with large screen, local voice, AI record, push and other functions | ||
| Video Adjustment | |||
| Compression | H.264，H.265 | ||
| Resolution | Main stream：4MP(2560*1440), 3MP(2304*1296)，2MP(1920*1080)，1MP(1280*720) | ||
| Sub-stream | Sub-stream：448P(800*448)/D1(704*576)/360P(640*360 )/ CIF(352*288) | ||
| Frame rate | 4MP 20fps; 3MP 30fps | ||
| Video Adjustment | Brightness, saturation, chroma, contrast and sharpness adjustment | ||
| Network | |||
| Ethernet | RJ-45 10M/100M self-adaption | ||
| Protocol | ONVIF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS，IP Filter | ||
| Access protocol | Support ONVIF/private protocol/CGI/28181 | ||
| Max users | 3 main stream, 3 sub-stream | ||
| APP | P6slite(IOS，Android) | ||
| Client | EasyVMS(Windows) | ||
| Audio | |||
| Audio | G.711U、G711A | ||
| Input | Support | ||
| Output | Support | ||
| General specifications | |||
| Size | 38x38 single board | ||
| Temperature | -30℃～+80℃ | ||
| Power | DC12V 2A | ||
Coaxial Camera Applications
Innotronik’s Wifi Camera Indoor-ITY-R7 (4MP) delivers crisp 4MP video with seamless wireless connectivity. This wireless indoor camera with audio ensures clear two-way communication, perfect for home or office security. Easy setup and reliable monitoring for peace of mind.
✦ 4MP Ultra-HD: 2560 x 1440 resolution for exceptional clarity.
✦ 2.8" Video Call: Built-in screen for instant face-to-face remote calls.
✦ Dual-Band WiFi 6: 2.4/5 GHz and BLE 5.4 for ultra-stable connection.
✦ 360° Smart Tracking: Full 355° pan & tilt with intelligent motion following.
✦ AI Smart Detection: Real-time alerts for humans, sounds, and baby crying.
✦ Enhanced Night Vision: The 4mm F2.0 lens provides 10m of clear night imaging.
✦ Clear Two-Way Audio: Built-in mic and speaker with echo cancellation.
✦ Flexible Storage: Supports 128GB MicroSD, Cloud, and H.265 coding.
The Innotronik IP Camera-IN-W022-IP400G 4MP delivers high-resolution 4MP video with reliable PoE power support. Ideal for secure surveillance, this IP camera offers easy installation and stable network connectivity, enhancing your monitoring system with advanced IP camera PoE technology.
✦ 4MP Ultra-HD: 2560*1440 resolution with H.265 for superior clarity.
✦ AI Human Detection: Supports polygonal defense areas and custom voice alerts.
✦ Smart Alarm Linkage: Features light/sound alarms and instant mobile push.
✦ Standard PoE: Integrated RJ-45 for stable power and data transmission.
✦ Image Enhancement: Supports 3D NR and D-WDR for clear professional video.
✦ ONVIF Compatible: Easy integration with NVRs via multiple network protocols.
✦ Remote Access: Monitor via the P6slite app or the EasyVMS Windows client.
✦ Wide Temp Range: Durable performance in environments from -30°C to +80°C.
Innotronik’s Wifi Camera Indoor-ITY-PT30 (4MP) delivers clear 4MP video for secure indoor monitoring. This reliable indoor camera features easy Wi-Fi setup, motion detection, and night vision—perfect for home or office security. Enhance safety with Innotronik’s advanced indoor camera solution.
✦ 4MP Dual-Lens: High-resolution dual-lens system for superior image clarity.
✦ 360° PTZ View: 355° horizontal and 70° vertical rotation for full coverage.
✦ Dual Night Vision: 10 m range with infrared and full-color modes (12 LEDs).
✦ Tuya Smart App: Seamless integration for remote control and IoT management.
✦ Two-Way Audio: Built-in mic and speaker for real-time remote communication.
✦ Smart AI Alerts: Motion detection with instant mobile push and screenshots.
✦ H.265 Storage: Efficient compression supporting up to 128GB MicroSD and Cloud.
✦ Multi-User Share: Supports family sharing for up to 20 users simultaneously.
Experience seamless security with the Innotronik Wifi Solar Camera-ITY-PT31 (4MP). This solar-powered wifi camera delivers crystal-clear 4MP video, easy wireless setup, and eco-friendly operation. Perfect for outdoor monitoring with reliable, solar-powered wifi connectivity.
✦ 0-10 meters and 120-degree PIR angle and long-distance standby trigger, boots faster
✦ 7800 mAH battery and standby about 1 month (30 times/day)
✦ Automatic full-color alarm recording
✦ 4-megapixel real pixels, high-penetration lens, high-quality imaging
✦ 15 meters dual-light night vision
✦ Support human motion detection, accurate APP alarm push
✦ Two-way voice real-time intercom, anytime and anywhere to communicate
✦ 128G TF card storage without network, cloud storage video with more secure
✦ IP65 waterproof, dustproof, wind and rain fearless
